Name: LGRIG® Rubber Ladder Fender Arch Type
Brand: QINGDAO LG RIGGING CO.,LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

 Products

Trawling Gear

 

Trawling Swivel 

Hooks 

Trawling Shackle 

Rope Thimbles 

Rings & Links 

Kelly's Eye & Stoppers 

G-Hooks & Recessed Links 

Connectors 

Tools 

Rockhopper Spare Parts 

Trawling Chain 

Synthetic Rope 

Trawl Wire 

Anchors & Fittings 

Wire Rope Clips 

Ferrules & Terminals 

Rigging Screws 

Fishing Net Float 

Fenders & Buoys 

 Square Fenders

 Rubber to Metal Bonded-Customized Products

 Rubber Molded Dock Fenders

 Arch Fenders-China LG Supply

 D Fenders-China LG Supply

 Vehicle Wheel Chocks

 Laminated Wheel Chocks

 Molded Dock Bumpers

 Rubber Laminated Dock Bumpers

 LGRIG® Super Cell Rubber Fenders SCA Type

 LGRIG® Super Cone Fenders SCB Type

 LGRIG® Arch Fenders DA Type

 LGRIG® Arch Fenders DAF Type

 LGRIG® Rubber Ladder Fender Arch Type

 LGRIG® Corner Arch Fenders

Lashing/Slings/Load Binders 

Trawl Blocks & Pulley 

Toggles & Spacers 

Safety Appliance 

Footrope Gear 

Trawl Door 

Lifting & Rigging

 

Stainless Steel Products

 

Boat Fittings

 

Pole Line Hardware

 

Building Components

 

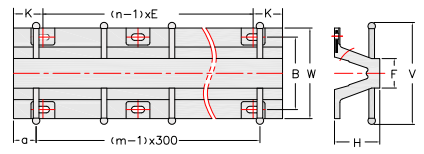

Specification of LGRIG® Rubber Ladder Fender Arch Type

Part No.	Specification	H	B	W	F	V	a
LGRLA200H	200H	200	320	400	150	450	150~200
LGRLA250H	250H	250	410	500	187	484	150~200
LGRLA300H	300H	300	490	600	225	545	150~200
LGRLA400H	400H	400	670	800	300	620	150~200
LGRLA500H	500H	500	840	1000	375	695	150~200

Units:mm

Specification	200H
L	1500	1800	2100	2200	2400	2700	3000	3300	3600
a	150	150	150	200	150	150	150	150	150
m	5	6	7	7	8	9	10	11	12
K	120	120	120	120	120	120	120	120	120
n	3	3	4	4	4	5	5	6	6
E	630	780	620	653	720	615	690	612	672
Weight kg	90	100	120	125	145	161	180	198	216

Units:mm

Specification	250H
L	1500	1800	2100	2200	2400	2700	3000	3300	3600
a	150	150	150	200	150	150	150	150	150
m	5	6	7	7	8	9	10	11	12
K	130	130	130	130	130	130	130	130	130
n	3	3	4	4	4	5	5	6	6
E	620	770	613	647	713	610	685	608	668
Weght kg	130	160	185	190	210	240	260	290	320

Units:mm

Specification	300H
L	1500	1800	2100	2200	2400	2700	3000	3300	3600
a	150	150	150	200	150	150	150	150	150
m	5	6	7	7	8	9	10	11	12
K	140	140	140	140	140	140	140	140	140
n	3	3	4	4	4	5	5	6	6
E	610	760	606	640	706	605	680	604	664
Weght kg	180	215	260	285	310	350	388	426	465

Units:mm

Specification	400H
L	1500	1800	2100	2200	2400	2700	3000	3300	3600
a	150	150	150	200	150	150	150	150	150
m	5	6	7	7	8	9	10	11	12
K	150	150	150	150	150	150	150	150	150
n	3	3	4	4	4	5	5	6	6
E	600	750	600	633	700	600	675	600	660
Weight kg	300	360	420	440	480	540	600	660	720
